Highlights

Performance Powerhouse: Khadas Mind Graphics boasts NVIDIA GeForceⓇ RTX™ 4060 Ti desktop GPU, the advanced Ada Lovelace architecture enables Mind Graphics to multiply performance and improve power efficiency. Whether it's AIGC, 3D rendering, video editing, or playing blockbuster games— watch as Mind Graphics easily handles GPU‑intensive tasks. Embrace an accelerated workflow and unleash your creative genius.

Versatile eGPU: The Khadas Mind Graphics supports both Mind Link interface and Thunderbolt3&4 USB-C connections, it is widely compatible with third-party laptops and desktops that have Thunderbolt ports. So, even if you don't have Khadas Mind, you can also use Mind Graphics to boost your laptop's GPU performance.

Compact & Stylish Design: CNC unibody aluminum enclosure continuing Khadas’ signature design language, ultra-compact at just 2.5 liters in volume. For those who pursue a minimalist desk setup, it will be your perfect "partner".

Rich Interfaces for Peripheral Expansion: In addition to the conventional USB-C, USB-A 3.2, HDMI, DisplayPort, 2.5Gbps ethernet, SD 4.0 card reader, and a 3.5 mm headphone jack, Mind Graphics is equipped with a fingerprint reader, which not only protects your privacy but also saves you from the trouble of entering your password. In addition, Mind Graphics also has a Mind Locking Mechanism, so you don't have to worry about accidental disconnection and potential data loss.

All-in-one Desktop Entertainment System: Mind Graphics delivers lifelike ultra-HD visuals up to 8K resolution at a 60Hz refresh rate with the flexibility to connect to up to 4 external displays. With the far-field microphone array, Mind Graphics enables you to clearly communicate your ideas in online meetings. The dual-driver speaker is also expertly tuned, effortlessly handling both high and low sound frequencies. Just sit back and enjoy your movie time with an immersive audio and visual experience provided by Mind Graphics.

Worry-free Warranty: Mind Graphics has a 1-year warranty starting from the order date. If there are any performance or component failures due to quality defects within the warranty period, you're entitled to free replacement or repair services. After the warranty expires, repair fees will be charged according to Khadas' official standards.

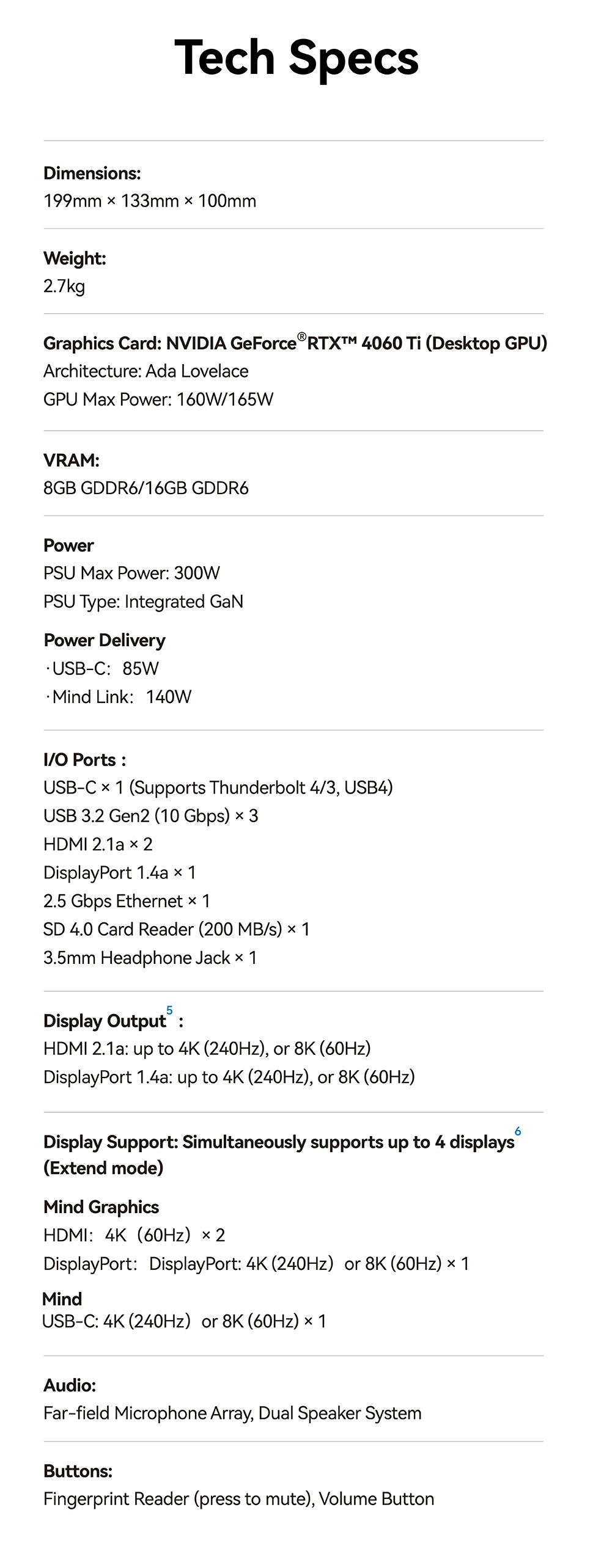

I/O Ports&Physical Buttons

I/O Ports:
1× USB-C (Support USB4/ThunderBolt4/ThunderBolt3)
3× USB-A 3.2 Gen 2 (10Gbps)
2× HDMI 2.1a (Supports 4K/240Hz or 8K/60Hz)
1× DisplayPort 1.4a (Supports 4K/240Hz or 8K/60Hz)
1× Ethernet (2.5Gbps)
1× SD Card 4.0（200MB/s）
1× Mind Link
1× Headphone Jack 3.5mm with Mic supported
2× Speaker(10W)
2× Far-field Microphone Array

Buttons:
1× Physical volume rocker
1× Mind Locking
1× Fingerprint reader with mute button

What's In The Box

1× Mind Graphics
1× AC Power Cable
1× Manual
1× Warranty Card

Note

1. Data provided by NVIDIA. 1920×1080 Resolution, Highest Game Settings. DLSS Super Resolution Quality Mode on GeForce RTX 20 Series, 30 Series, and 40 Series; Frame Generation on RTX 40 Series. i9-12900K, 32GB RAM, Win 11 X64. RTX 4060 Ti 16GB Model.

2. Mind Graphics supports 8-lane PCIe 4.0, providing up to 128 GT/s of transfer speed. Mind supports 4-lane PCIe 4.0, providing up to 64 GT/s of transfer speed when combined with Mind Graphics.

3. The data provided is based on the peak theoretical value of 8-lane PCIe 4.0 (128GT/s), benchmarked against Thunderbolt 4's PCIe speed of 32 GT/s.

4. Mind Graphics is compatible with laptops or desktop computers equipped with Thunderbolt 4 or Thunderbolt 3 ports.

5. The HDMI 2.1a and DisplayPort 1.4a ports support up to 4K (240Hz), or 8K (60Hz). To use the maximum resolution, a display supporting DSC is required.

6. When using the Extend mode, up to 3 displays can be connected to Mind Graphics simultaneously, and 1 display can be connected to Khadas Mind. Meanwhile, the remaining two ports on Mind (USB-C and HDMI) support display output in Duplicate mode.
